Gas Schematic Sample and Requirements
THE FOLLOWING INFORMATION MUST BE INCLUDED ON GAS SCHEMATIC DIAGRAM:
o LIST ALL BTU'S FOR ALL APPLIANCES
o LIST LENGTH AND DIAMETER OF EACH PIPE
o TOTAL LENGTH TO EACH APPLIANCE FROM METER
THE FOLLOWING INFORMATION IS REQUIRED TO BE INCLUDED WITHIN GAS SCHEMATIC PLAN:
o Total BTU's
o Longest Run
o Gas Type
o Piping Material
o Inlet Pressure
o Pressure Drop
o Specific Gravity

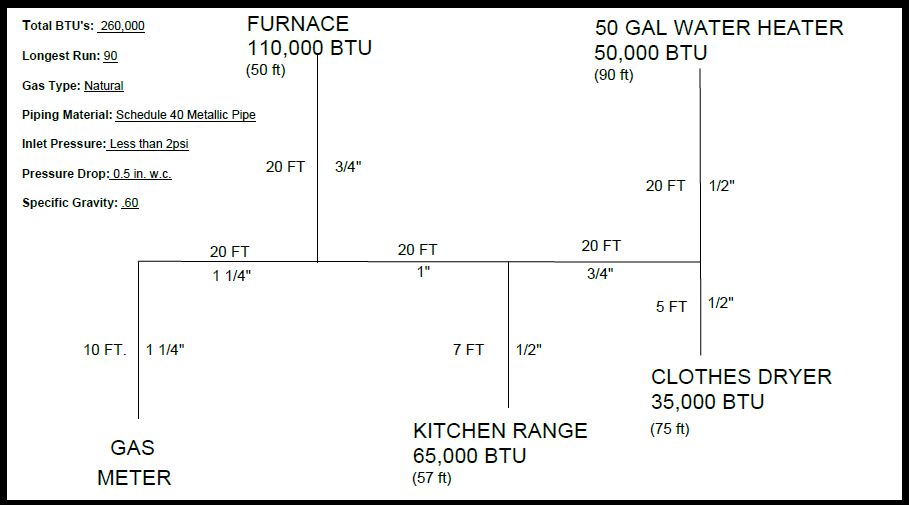

SAMPLE GAS PIPE SCHEMATIC
